ODORtec

Odor
Choose performance:

A solution dedicated for filtering odors from the air. The device eliminates biological and chemical odors.

CONFIGURE YOUR DEVICE ASK ABOUT A PRODUCT

Description

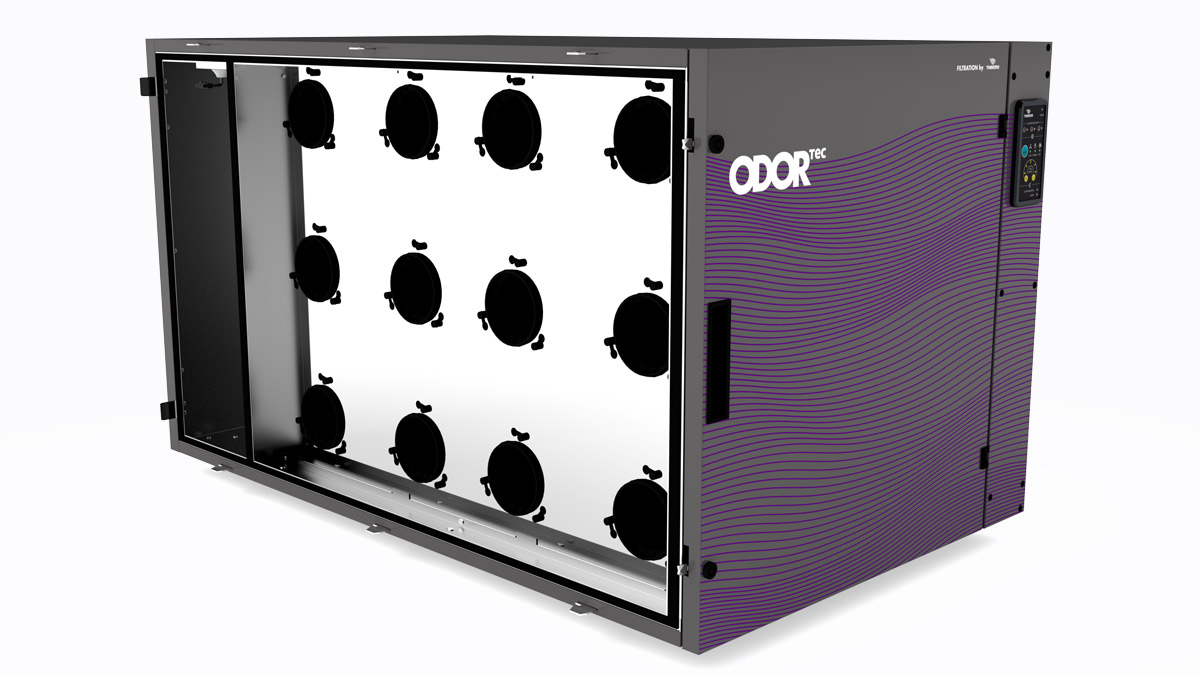

The ODORtec filter eliminates odors from the passing air. Modular design allows for a lot of flexibility in configuring the device and adjusting it to the current needs.

Prevents polluted air from passing to downstream system elements.

Example applications of ODORtec filters:

  • An air handling unit intake system in a natural environment where synthetic plant protection products are used – filtration of unpleasant smells of chemical agents, e.g. conventional horticulture and agriculture areas.
  • An air handling unit intake system in a natural environment where organic biologically active substances are present, i.e. animal feces, waste water treatment plants, waste sorting plants, zooculture facilities.

Purpose

For artificial ventilation systems in residential and commercial facilities. The filter may be used as an additional filtration section at the part of inflow system downstream of the air handling unit.

The filter may also be used for indoor operation in a closed cycle. In such systems the filtration section should be fitted with a FANtec fan section.

Technical Data

ODORtec is available in the ranges shown in the table below. Model variety
is the consequence of the air flow they are able to filter.

ModelAir flowPower supplyPower consumptionFlow resistanceDevice dimensions
m³/hV ACWPa(W) x (H) x (L) mm
6.0400-80023030170608x529x725
10.0800-120023030170795x682x725
16.01200-2000230301801480x682x725

Equipment Configurations
Bypass + ALERtec + ODORtec + FANtec

A filtering device designed to remove airborne allergens and odors from the air.

Filtration of PM2.5 grade particles through a 3-stage selection process ensured by the ALERtec module.

ODORtec activated carbon inserts ensure odor reduction.

Air delivery and stream flow adjustment rely on the FANtec module.

Built-in solid particles and pressure sensors monitor the quality of air at the device inlet and outlet, as well as the condition of individual filtration sections.

A BYpass directs the air between the filtration section and the free flow chamber.BYpass + ODORtec

BYpass + ODORtec

A filtering device designed to remove odors from the air.

ODORtec activated carbon inserts ensure odor reduction.

Air pumping must be ensured by an external fan.

A BYpass directs the air between the filtration section and the free flow chamber.

BYpass + ODORtec + FANtec

A filtering device designed to remove odors from the air.

ODORtec activated carbon inserts ensure odor reduction.

Air delivery and stream flow adjustment rely on the FANtec module.

A BYpass directs the air between the filtration section and the free flow chamber.

BYpass + SMOGtec + ODORtec + FANtec

A filtering device designed to remove odors, as well as smoke and smog from the air.

Filtering of PM2.5 grade particles by means of a SMOGtec electrostatic filter.

ODORtec activated carbon inserts ensure odor reduction.

Air delivery and stream flow adjustment rely on the FANtec module.

Built-in solid particles and pressure sensors monitor the quality of air at the device inlet and outlet, as well as the condition of individual filtration sections.

A BYpass directs the air between the filtration section and the free flow chamber.

Installation

Schematic diagram of ODORtec installation combined with a recuperator and an additional filtration section.

Documents for download
Name document
File size
Download
DTR - ODORtec
2 MB
Download document
Karta Katologowa - ODORtec
616 KB
Download document
