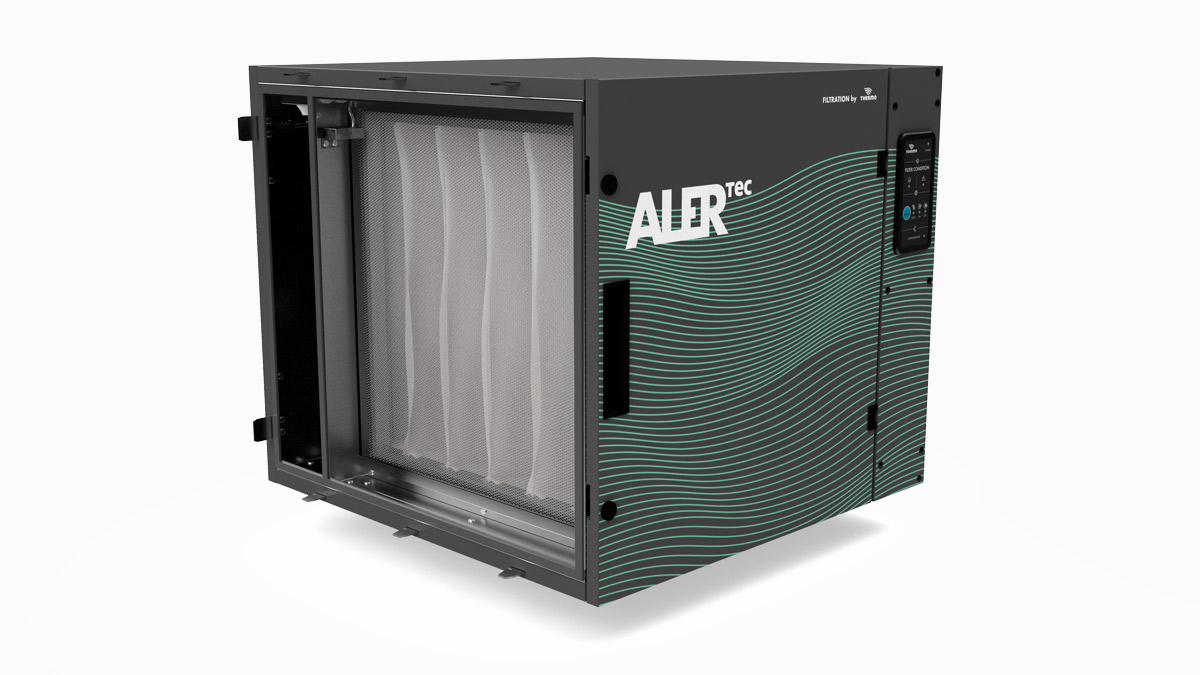

ALERtec

Fan filter units for allergy sufferers

Choose performance:

A solution dedicated for allergy sufferers who want to eliminate allergens from the air.
ALERtec ensures filtration of airborne solid particles from the air. Effective in case of particles with a size of at least 2.5 µm.

CONFIGURE YOUR DEVICE ASK ABOUT A PRODUCT

Description

Filtration eliminates the flow of particles, such as mineral particles, dust, pollens, fungi spores, coal dust, animal hair, fine ash particles.

Carefully selected materials are used in the three-stage filtration process. The device ensures filtration of airborne solid particles from the air up to PM2.5.
Its configuration allows for installation both in existing heat recovery systems, as well as standalone devices for autonomous operation.

Every artificial ventilation system that offers air supply or air supply and exhaust can be extended with an additional ALERtec device.

Purpose

ALERtec is designed for thorough air filtration. Removes airborne solid pollutants. Filtering accuracy depends on the filtration inserts used.

The device filters air, removing particles of up to 2.5 µm.

ALERtec was designed specifically for operation with THERMOtec filtration modules and devices, i.e. ALERtec, ODORtec, SMOGtec, BYpass, INlet, OUTlet.

ALERtec is a module with 3-stage air filtration. Specially selected filtration inserts ensure G4, F7 and E11 class filtration.

The condition of each filter is analyzed in real time. An assembly of four pressure transducers coupled with an automation system controls the filters depletion level.

Technical Data

ALERtec is available in the ranges shown in Table. Model variety is the consequence of the air flow they are able to process.

The device's automation system analyzes air quality and amount of pollution in the air. Once the admissible level is exceeded, the device is automatically activated.

Model	Air flow	Power supply	Power consumption	Flow resistance	Device dimensions
Model	m³/h	V AC	W	Pa	(W) x (H) x (L) mm
Compact	0-400	230	120	220-530	640x300x780
Compact R	0-400	230	125	220-540	780x300x780
6.0	400-800	230	30	270-670	608x529x592
10.0	800-1200	230	30	250-650	795x682x592
16.0	1200-2000	230	30	250-700	1480x682x592

Equipment Configurations

ALERtec Compact R

A filtering device designed to remove airborne allergens from the air.

Filtration of PM2.5 grade particles through a 3-stage selection process.

The Compact R Series is designed for installation in existing ventilation systems on supply ducts directly upstream of the recuperator.

An integrated bypass allows air flow through the device without using filters, which is particularly useful when the intake air is periodically clean.

An automation system ensures that the flow is adjusted to the current recuperator demand.

ALERtec Compact

A filtering device designed to remove airborne allergens from the air.

Filtration of PM2.5 grade particles through a 3-stage selection process.

The Compact Series is designed for autonomous operation as a standalone device.

Built-in solid particles and pressure sensors monitor the air quality in the room and the condition of the filters.

An automation system ensures reliable operation, tailored to air quality requirements.

Bypass + ALERtec + FANtec

A filtering device designed to remove airborne allergens from the air.

Filtration of PM2.5 grade particles through a 3-stage selection process ensured by the ALERtec module.

Air delivery and stream flow adjustment rely on the FANtec module.

Built-in solid particles and pressure sensors monitor the quality of air at the device inlet and outlet, as well as the condition of individual filtration sections.

A BYpass directs the air between the filtration section and the free flow chamber.

Modular design allows for a lot of flexibility in configuring devices, depending on the needs and airflow. Series 6.0 and above Assemblies can operate as standalone devices or connected to existing ventilation systems.

Bypass + ALERtec + ODORtec + FANtec

A filtering device designed to remove airborne allergens and odors from the air.

Filtration of PM2.5 grade particles through a 3-stage selection process ensured by the ALERtec module.

Activated carbon inserts ensure odor reduction.

Air delivery and stream flow adjustment rely on the FANtec module.

Built-in solid particles and pressure sensors monitor the quality of air at the device inlet and outlet, as well as the condition of individual filtration sections.

A BYpass directs the air between the filtration section and the free flow chamber.

BYpass + ALERtec + SMOGtec + FANtec

A filtering device designed to remove airborne allergens and smog from the air.

Filtration of PM2.5 grade particles through a 3-stage selection process ensured by the ALERtec module.

Smog and smoke are removed by the electrostatic SMOGtec filter.

Air delivery and stream flow adjustment rely on the FANtec module.

Filter condition and optimal operational adjustment to match the current conditions rely on an automation system fitted with solid particles sensors and pressure transducers.

A BYpass directs the air between the filtration section and the free flow chamber.

Installation

Below is a sample application diagram for the ALERtec fan filter unit with a typical recuperator.
